Heavy-duty modular construction for minimal deflection.
Fixtures
High-Precision
Holding, Welding & Inspection Fixtures
Fixtures
PAC World Technology designs and manufactures custom industrial fixtures tailored for automotive, aerospace, and general manufacturing applications. Our fixtures are engineered to provide maximum rigidity, repeatable clamping, and precise component positioning during machining, welding, assembly, and inspection processes.
Key Capabilities & Features
-
-
Pneumatic, hydraulic, and manual clamping options.
-
Integrated sensor feedback for part presence and poka-yoke validation.
-
High-precision hardened steel locating pins and wear-resistant pads.
-
Custom-designed for complex geometries and tight tolerance parts.
Technical Specifications
| Clamping Mechanism | Pneumatic / Hydraulic / Manual |
|---|---|
| Positional Accuracy | ± 0.02 mm |
| Material | Hardened Tool Steel, High-Grade Alloy / Aluminum |
| Application | Machining, Welding, Inspection & Assembly Lines |
Our Fixture Solutions
Frequently Asked Questions
What types of fixtures do you manufacture?

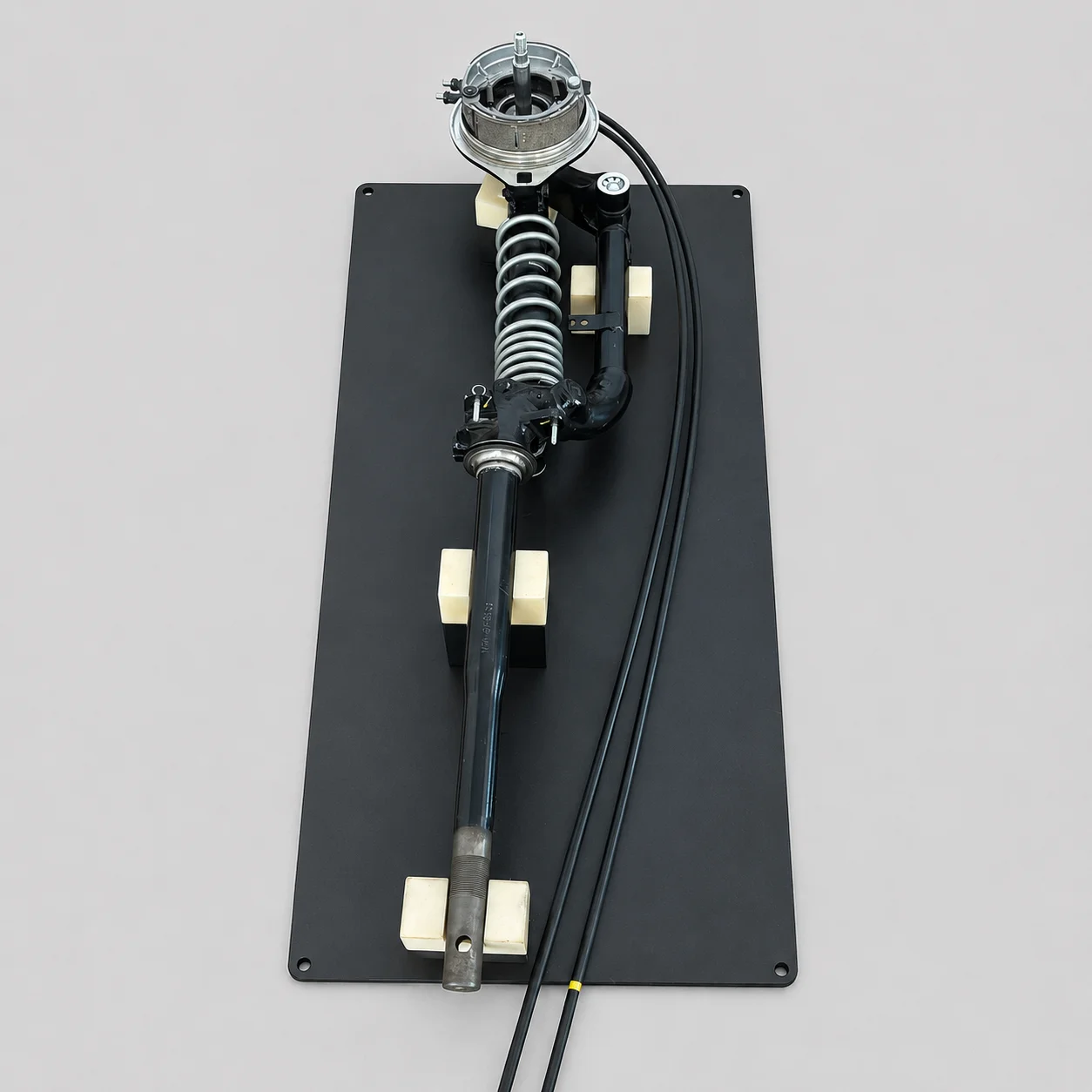

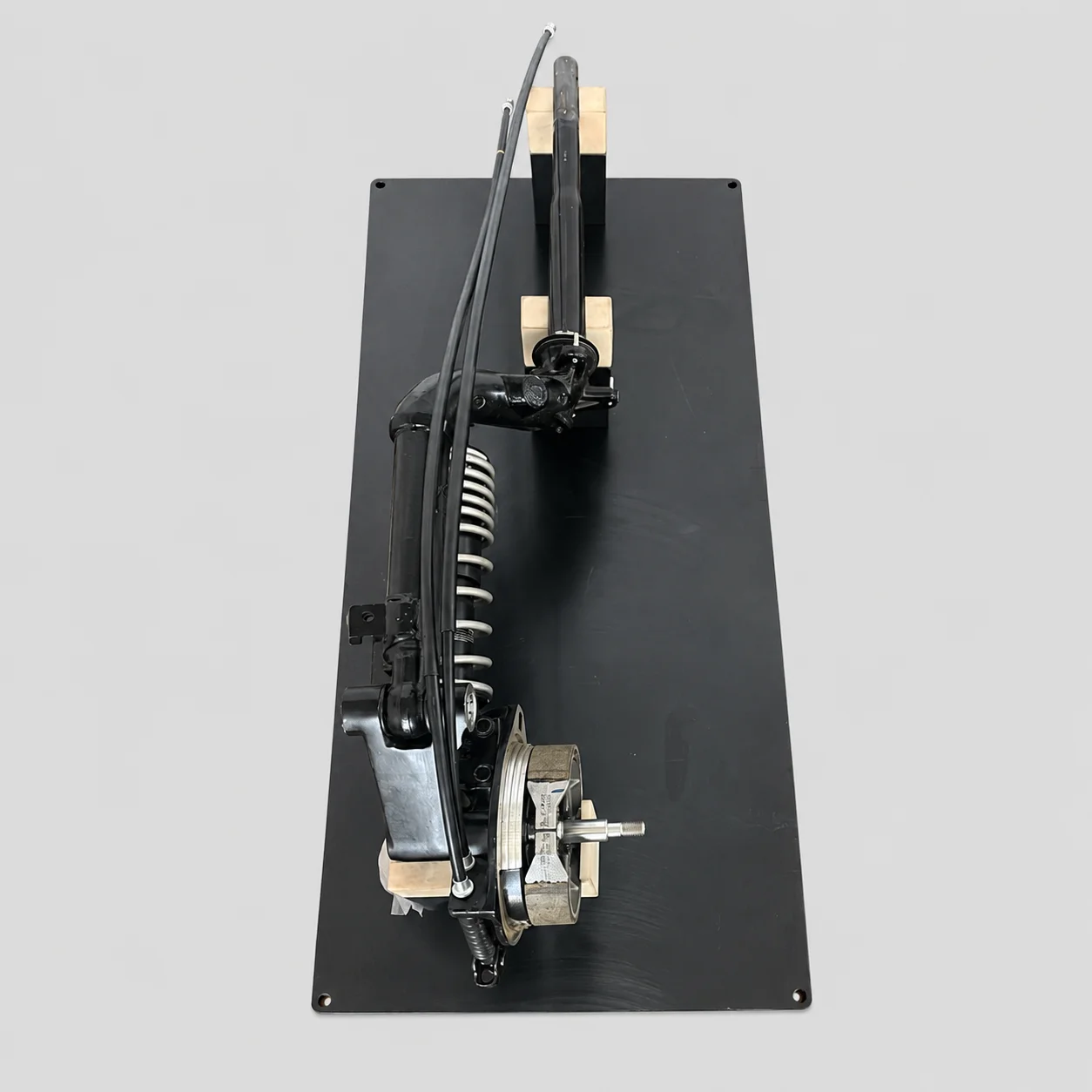

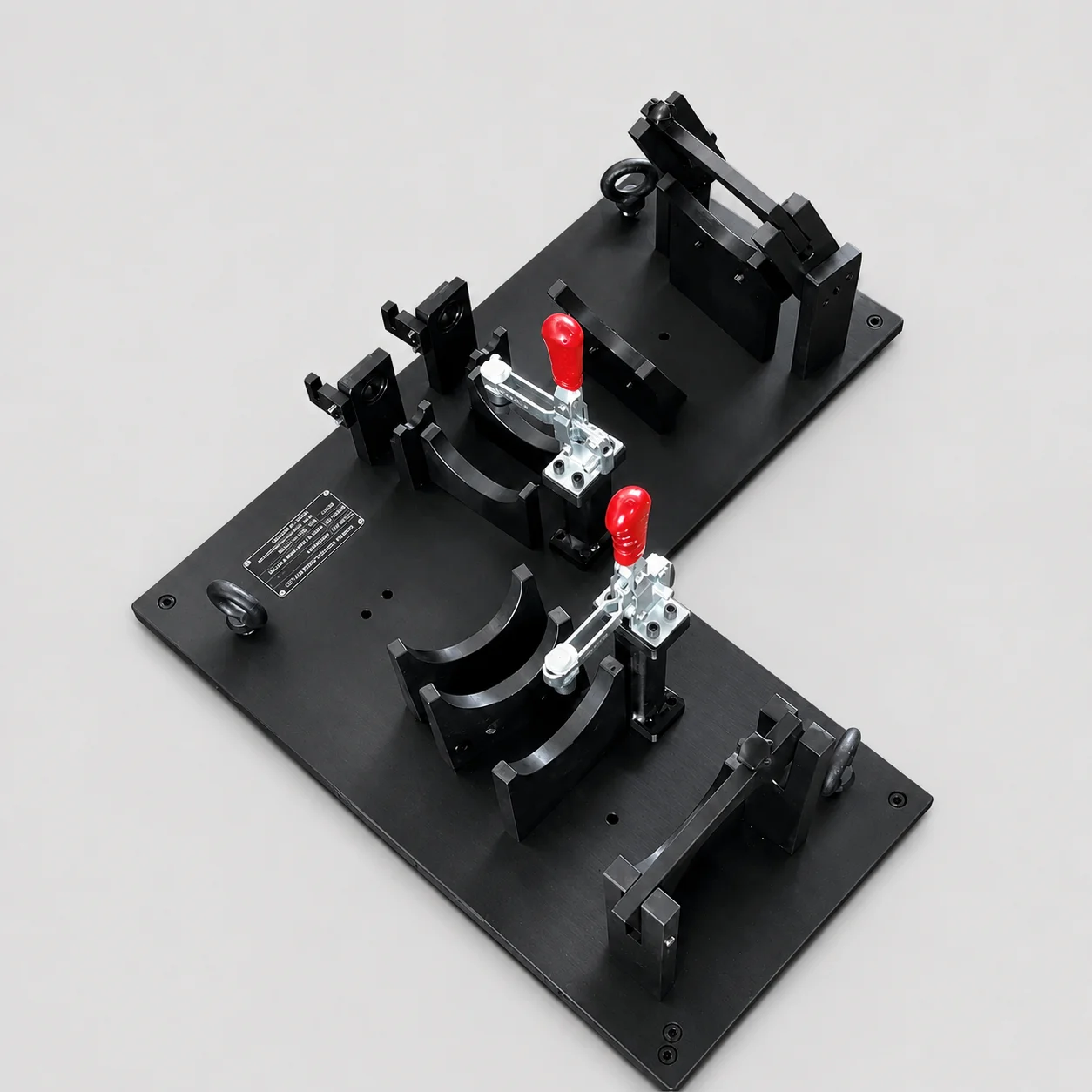

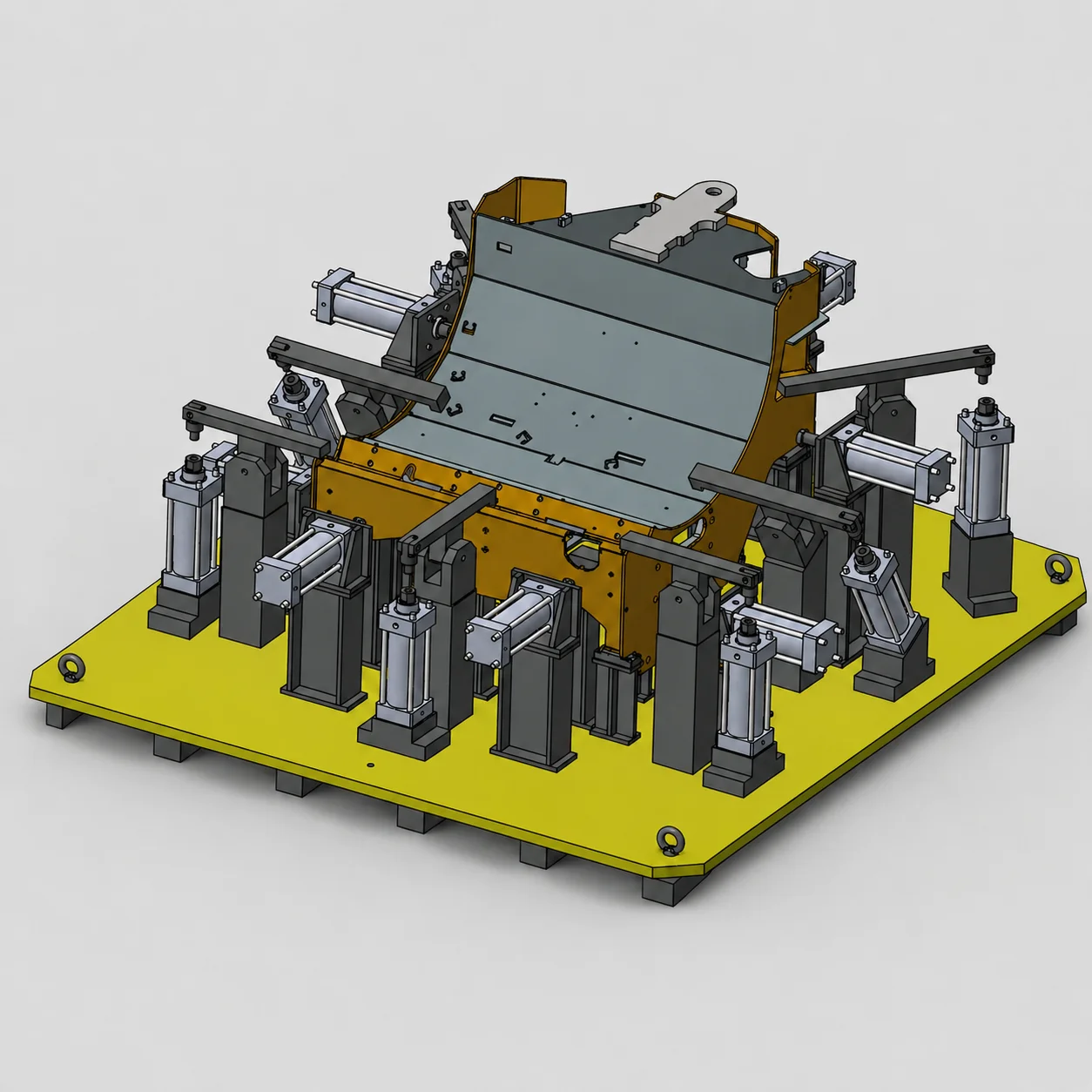

We manufacture high-precision welding fixtures, holding fixtures, checking fixtures, assembly fixtures, and custom inspection gauges.
What is the positional accuracy of your fixtures?
Our fixtures achieve a standard positional accuracy of ±0.02 mm, depending on material specifications and application needs.
Can you integrate sensors or pneumatic systems?
Yes, we integrate part-presence sensors, pneumatic clamping systems, and PLC-interfaced poka-yoke mechanisms for error proofing.
Need a Customized Fixtures Solution?
Our engineering team can customize equipment parameters to match your specific production requirements.
